3D Full Inverter Pool Heat Pump

This budget-friendly water chiller is specifically designed to fit seamlessly into any bathtub, providing you with a refreshing and comfortable bathing experience.

Fast and Stable:

Our 3D full inverter technology provides precise control over compressor, fan, and EEV, resulting in faster heating and consistent pool temperatures.

Various Applications:

Ideal for gyms, hotels, and aqua parks, etc., providing optimal comfort and efficiency.

Inquire Now

Details Parameters

Various Applications

Thanks to wide operation range and excellent performance, Ocean Mangrove Series can perfectly meet different applications like gyms, hotels, aqua parks, etc.

Fast and Stable

With 3D full inverter technology, Ocean Mangrove Series can adjust compressor frequency, fan speed and EEV steps to meet different heating or cooling demands precisely. The pool water temperature can reach the target faster and keep more stable after the target is reached.

3D Full Inverter Pool Heat Pump

Sevenfold Noise Reduction

3D Full Inverter Pool Heat Pump 3D Full Inverter Technology

With Nancent 3D full inverter technology, the heat pump can precisely adjust the status of compressor, fan motor and EEV to achieve the most quiet running at different conditions.

3D Full Inverter Pool Heat Pump Compressor Noise Reduction

Using bigger compressor with sufficient capacity to lower the max. frequency and control the noise level.

3D Full Inverter Pool Heat Pump Soundproof Insulation of Compressor

Using double-layer soundproof sponge, the noise of the compressor is greatly reduced.

3D Full Inverter Pool Heat Pump Additional Compressor Chamber

Using an additional compressor chamber, covered with full soundproof sponge, the noise of compressor is further reduced.

3D Full Inverter Pool Heat Pump Copper Pipe Noise Reduction

After tens of thousands of simulations, the system structure has been optimized for many times such as direction and distance of copper pipes to achieve the best copper-pipe layout with less vibration and noise.

3D Full Inverter Pool Heat Pump Special Fan Design

The unit uses the big size fan blade with lower speed to reduce the noise level. At the same time, there is only one fan motor for all models to realize the lower noise level.

3D Full Inverter Pool Heat Pump Unique Silent Mode

Ocean Mangrove Series is specially designed with a silent mode to run at a low speed at night for users.

3D Full Inverter Pool Heat Pump

Smart App Remote Control

Have you ever imagined you can control heat pumps on your smartphone?

Ocean Mangrove Series Smart App technology is now welcomed on the market. If you want to adjust the target temperature, you don't have to go to the machine room to check or control them from now on. All information about the heat pump is just at your fingertips.

3D Full Inverter Pool Heat Pump

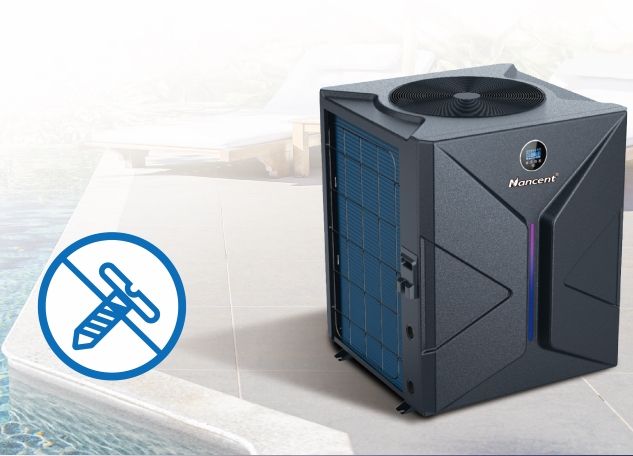

Screw-free Design

Ocean Mangrove Series adopts screw-free design to make the casing more simply and fashionable.

Parameters

Model: NF-	100PR3-ID-U	130PR3-ID-U	21PR3-ID-U	265PR3-ID-U	210PR3-TID-U	265PR3-TID-U	310SPR3-TID-U	360PR3-TID-U	410PR3-TID-U	480PR3-TID-U
Advised Pool Size	20~45	30~50	45~80	60~90	45~80	60~90	70~110	80~125	100~150	120~180
Heating Water Temp. Range(℃)	9-40	9-40	9-40	9-40	9-40	9-40	9-40	9-40	9-40	9-40
Cooling Water Temp. Range(℃)	8-28	8-28	8-28	8-28	8-28	8-28	8-28	8-28	8-28	8-28
Ambient Operating Range for Heaitng(℃)	-15~43	-15~43	-15~43	-15~43	-15~43	-15~43	-15~43	-15~43	-15~43	-15~43
Ambient Operating Range for Cooling(℃)	10~43	10~43	10~43	10~43	10~43	10~43	10~43	10~43	10~43	10~43
[Heating] Ambient Temperature: (DB/WB) 27°C/24.3°C; Water Inlet/Outlet Temperature: 26°C/28°C.
Heating Capacity（kW）	3.35~10.20	4.18~13.31	6.36~20.60	8.20~26.50	6.36~20.60	8.20~26.50	9.67~31.20	11.11~35.85	12.78~41.12	14.95~48.20
Power Input (kW)	0.22~1.63	0.27~2.16	0.41~3.29	0.53~4.29	0.41~3.29	0.53~4.29	0.61~5.18	0.71~5.53	0.83~6.69	0.95~8.17
COP	15.23~6.26	15.48~6.16	15.51~6.26	15.47~6.18	15.51~6.26	15.47~6.18	15.85~6.02	15.65~6.48	15.40~6.15	15.74~5.90
[Heating] Ambient Temperature: (DB/WB) 15°C/12°C; Water Inlet Temperature: 26°C.
Heating Capacity（kW）	2.35~7.14	2.89~9.32	4.45~14.42	5.64~18.39	4.45~14.42	5.64~18.39	6.77~21.84	7.87~26.42	9.04~29.14	10.12~32.65
Power Input (kW)	0.31~1.55	0.39~2.03	0.59~3.12	0.76~4.05	0.59~3.12	0.76~4.05	0.93~4.94	1.03~5.46	1.20~6.20	1.37~7.05
COP	7.58~4.61	7.41~4.59	7.54~4.62	7.42~4.54	7.54~4.62	7.42~4.54	7.28~4.42	7.64~4.84	7.53~4.70	7.39~4.63
[Cooling] Ambient Temperature: (DB/WB) 35°C/-; Water Inlet/Outlet Temperature: 30°C/28°C.
Cooling Capacity (kW)	1.85~5.81	2.25~7.59	3.65~11.74	4.59~14.8	3.65~11.74	4.59~14.8	5.56~17.78	6.16~19.88	7.17~23.13	8.26~26.65
Power Input (kW)	0.26~1.33	0.32~1.76	0.51~2.74	0.65~3.51	0.51~2.74	0.65~3.51	0.81~4.22	0.86~4.50	1.00~5.28	1.21~6.32
EER	7.12~4.37	7.03~4.31	7.16~4.28	7.06~4.22	7.16~4.28	7.06~4.22	6.86~4.21	7.16~4.42	7.17~4.38	6.83~4.22
General Informations
Max Power Input (kW)	2.48	3.29	5.11	6.56	5.11	6.56	7.88	8.79	10.49	12.25
Max Current (A)	10.79	14.30	22.21	28.51	7.85	9.98	12.60	14.10	16.82	18.95
Power Supply	220V-240V~/50Hz				380V-415V/3N~/50Hz
Display	LCD Controller
Wi-Fi Function	Yes
Refrigerant	R32
Compressor Brand/Type	Mitsubishi
Water Heat Exchanger	Titanium Heat Exchanger
Water Pipe Connection (mm)	DN50
Water Flow (m³/h)	4.4	5.7	8.9	11.4	8.9	11.4	13.4	15.4	17.7	20.7
Water Pressure Drop (kPa)	12	14	16	20	16	20	24	26	28	30
Water Proof Level	IPX4
Sound Pressure Level at 1m [dB(A)]	45~52	45~53	46~54	46~56	46~54	46~56	48~58	49~60	51~62	55~64
Sound Pressure Level at 10m [dB(A)]	<36	<37	<39	<40	<39	<40	<41	<42	<43	<45
Net Weight（kg）	75	80	90	105	90	105	130	135	135	160
Net Dimensions[(L×W×H) mm]	627×600×800		793×774×974					900×874×1047		977×950×1150
The above data are for reference only, the specific data are subject to actual product.
