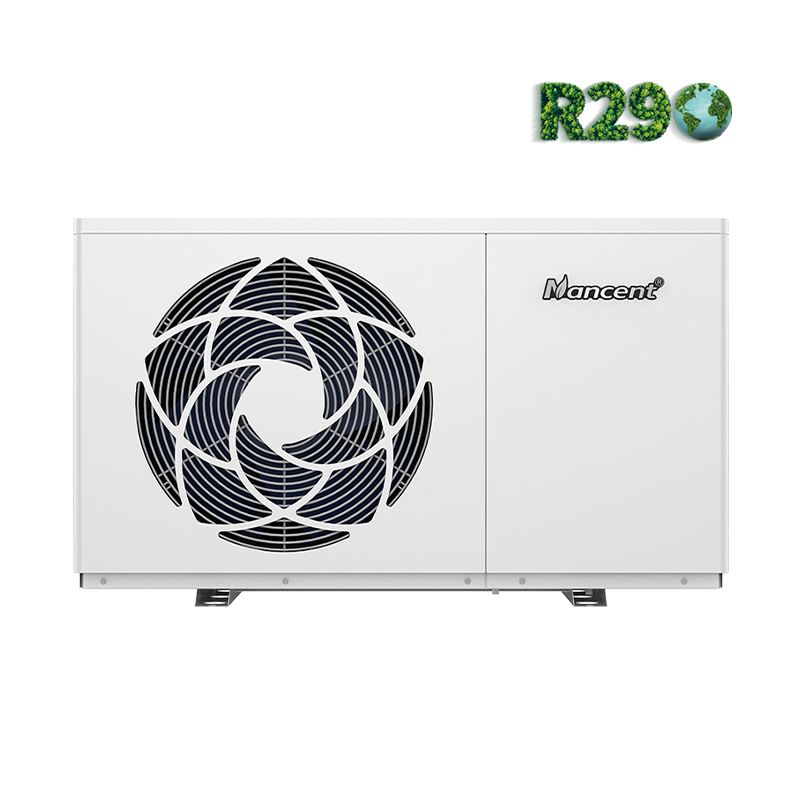

R290 Hot Water Heat Pump

The Nancent R290 Hot Water Heat Pump delivers high-temperature hot water with exceptional energy efficiency and minimal environmental impact, making it the ideal solution for eco-conscious homes and businesses.

High Energy Efficiency:

Experience significant energy savings with a market-leading coefficient of performance (COP) exceeding 4.5.

High-Temperature Hot Water:

Enjoy a continuous supply of hot water up to 75°C, ideal for larger homes with high hot water demands and even suitable for small commercial applications.

Intelligent Operation:

Advanced components and smart controls optimize performance and maximize energy savings in all conditions.

Inquire Now

Details Parameters

R290 REFRIGERANT

R290 refrigerant, also known as propane, is taken from nature with the GWP of 3 and ODP of 0. It is a completely eco-friendly refrigerant that neither pollutes the ozone layer nor has a greenhouse effect. Meanwhile, R290 refrigerant's main properties are a high enough critical temperature (96.7°C) and a low boiling point (-42.1°C), making it capable of achieving water temperatures of up to 75 °C, as well as running in -25 °C cold climates. Therefore, it is one of the preferred choices for a low carbon footprint.

4D FULL INVERTER TECHNOLOGY

Cozy series adopts full inverter technology, its components include a DC compressor, variable frequency fan motor, variable frequency pump, and EEV, while the DC compressor can adjust the different running frequencies according to the ambient temperature and water temperature in the surrounding of the equipment, meanwhile, it can effectively reducing the noise as well as improving the efficiency, but also the equipment still has a built-in inverter water pump so that it achieves a better reduction of the running cost.

R290 Hot Water Heat Pump

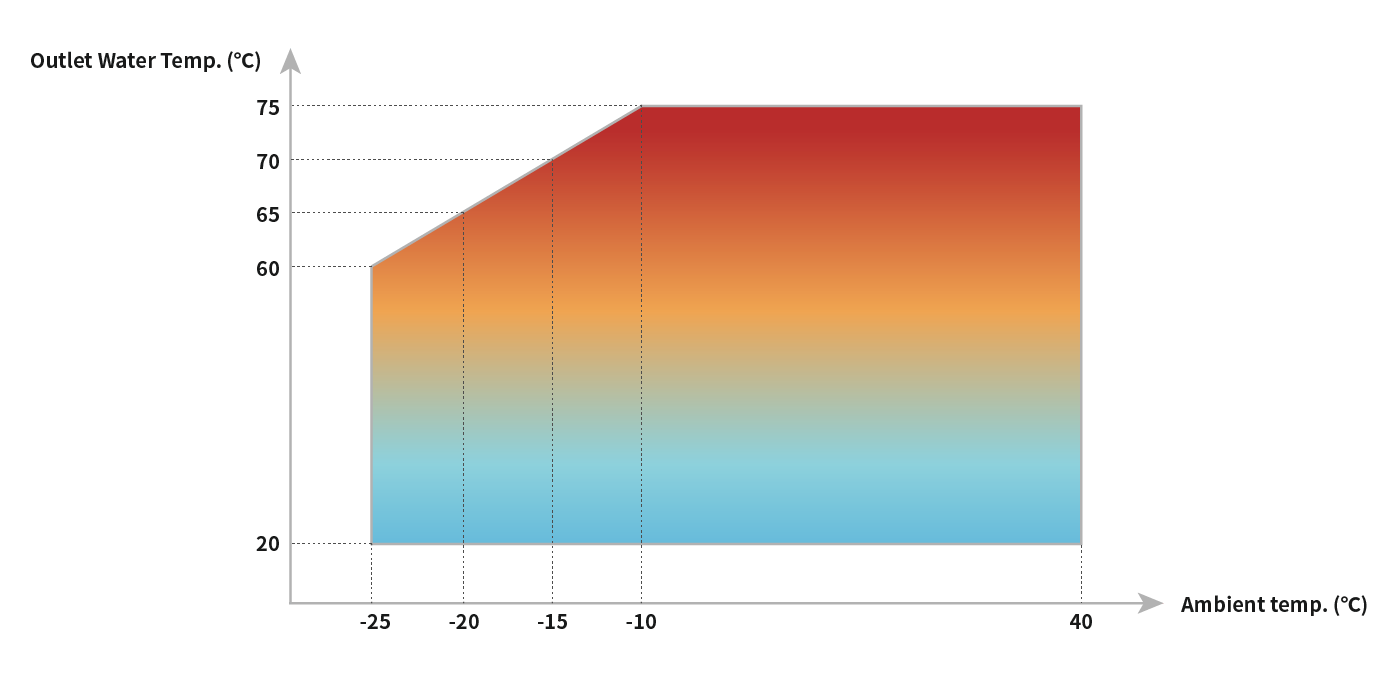

WIDE RUNNING RANGE

The perfect combination of eco-friendly R290 refrigerant and DC inverter technology enables highly efficient heating, with a maximum outlet temperature of up to 75°C, which satisfies the hot water supply all year round, while enabling stable running in -25°C cold climate.

R290 Hot Water Heat Pump

SILENT RUNNING

1. Streamline Air Guide Design

Our Full Inverter Pool Heat Pump features a streamlined air guide design that cuts through the air with minimal resistance—much like a sharp knife slicing through materials. This design maximizes airflow efficiency, ensuring that your heat pump operates at optimal performance while reducing energy consumption.

2. Plastic Encapsulated Fan Motor

Equipped with a plastic encapsulated fan motor, the system’s structure is finely tuned to optimize the direction and distance of copper pipes. This thoughtful arrangement minimizes vibration and noise, contributing to a smoother and quieter operation throughout the Full Inverter Pool Heat Pump.

3. Soundproof Insulation of Compressor

Using the double-layer soundproof sponge, the noise of the compressor is greatly reduced.

4. Floating Compressor Base

Our innovative floating compressor base design further reduces running vibrations and noise. By isolating the compressor from external disturbances, the Full Inverter Pool Heat Pump maintains stable performance and extends the lifespan of its critical components.

5. Pipeline Vibration and Noise Reduction

The system’s optimized layout, focusing on the precise direction and distance of copper pipes, ensures the best possible configuration to minimize vibration and noise. This results in a more efficient and reliable operation of your Full Inverter Pool Heat Pump, making it an ideal choice for environments where quiet operation is essential.

Experience the perfect blend of efficiency, durability, and quiet performance with our Full Inverter Pool Heat Pump—a sophisticated solution engineered to meet your pool heating requirements while ensuring a peaceful and energy-saving operation.

R290 Hot Water Heat Pump

FLEXIBLE INSTALLATIONS

R290 Hot Water Heat Pump

ULTIMATE SAFETY

Electric Shock Protection

The Full lnverter Pool Heat Pump is equipped with a water and electricity separation design,eliminating the risk of electric shock. This innovative feature ensures safe operation, providingreliable heating while protecting you and your loved ones from electrical hazards.

Multi Explosion Protection

Our Full inverter Pool Heat Pump incorporates advanced explosion-proof measures to preventp otential risks. The Cosy series is designed with the following protective features:

· Built-in Refrigerant Leakage Detection: Automatically identifies leaks to prevent potentialhazards.

· Unique sealing Design: Minimizes the risk of refrigerant escaping, ensuring safe andefficient operation.

· Multi-Hole Ventilation Design: Enhances air circulation to disperse heat and maintainsystem stability.

These comprehensive explosion-proof measures ensure safer use, making the Full inverter Pool Heat Pump one of the most secure and reliable pool heating solutions on the market

Choose the Full lnverter Pool Heat Pump for advanced safety, efficiency, and peace of minddelivering powerful performance while prioritizing user protection.

Parameters

Model: NF-	50WR2-ID
[Hot Water] Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. from 15°C to 55°C.
Heating Capacity (kW)	5.13
Power Input (kW)	1.10
COP	4.66
[Hot Water] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. from 9°C to 55°C.
Heating Capacity (kW)	4.32
Power Input (kW)	1.17
COP	3.69
Power Supply	220-240V~/50Hz
Max. Power Input (kW)	1.32
Max. Running Current (A)	5.86
Heating Operating Ambient Temp. Range (℃)	-25~45
Rated Water Temperature (℃)	60
Max. Outlet Water Temperature (°C)	75
Rated Water Flow (m³/h)	0.86
Hot Water Capacity(L/h)	110
Water Pressure Drop (kPa)	15
Compressor Brand	Mitsubishi
Fan Motor Type	DC motor
Circulating Pump Brand	Bulit-in
Water side heat exchanger	Double-wall plate heat exchanger
Display	4-inch Colored Touch Screen
Wi-Fi Function	Yes
Refrigerant Type	R290
Water Proof Class	IPX4
Water Pipe Connection	G1/2"
Sound Pressure Level at 1m [dB(A)]	39
Net Weight (kg)	60
Net Dimensions (L×W×H) (mm)	1040×390×576
The above data are for reference only, the specific data are subject to actual product.
