Mini pool heat pumps offer a compact, efficient, and user-friendly solution for heating smaller pools, ensuring both comfort and energy savings.
Quiet Operation:
The unit features advanced noise reduction technology, ensuring peaceful operation for you and your neighbors.
Compact and Easy to Install:
The unit's compact size makes it perfect for homes or areas with limited space, and its lightweight design simplifies installation.
User-Friendly Maintenance:
With a modular design and simple construction, mini pool heat pumps are easy to maintain and operate, allowing users to manage them effortlessly.

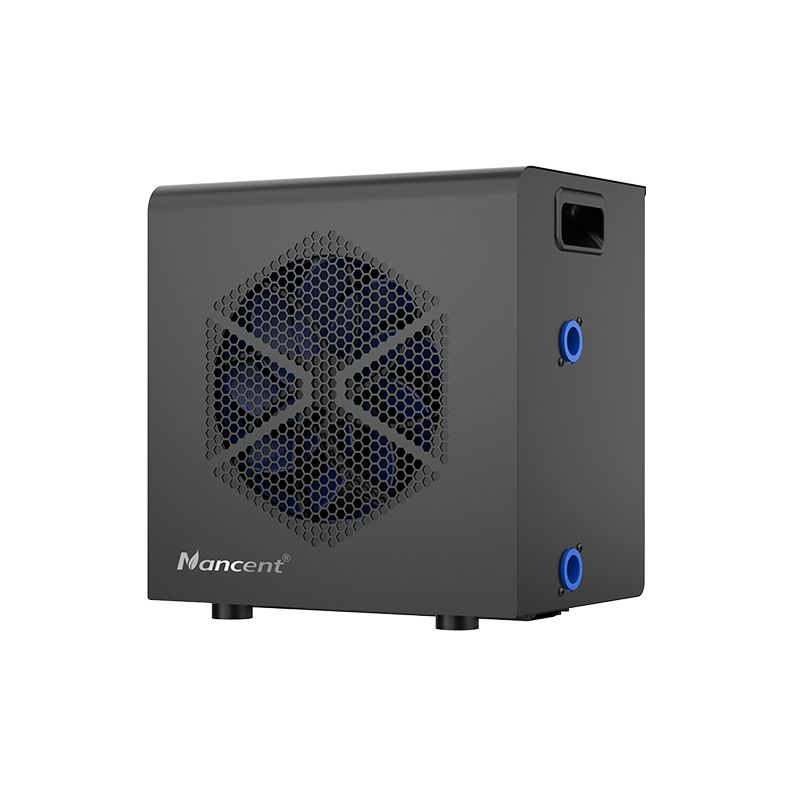

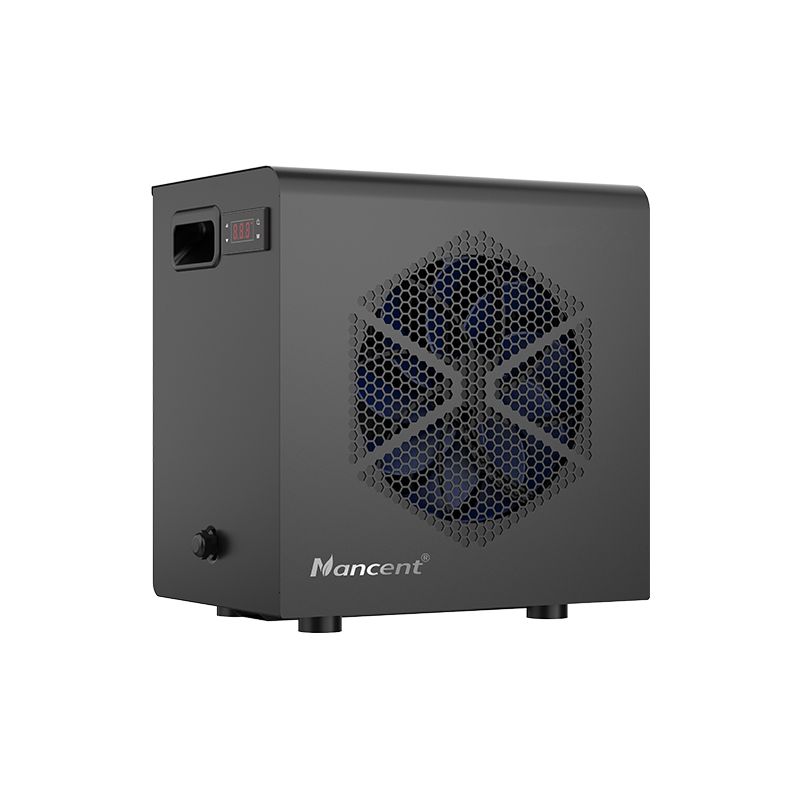

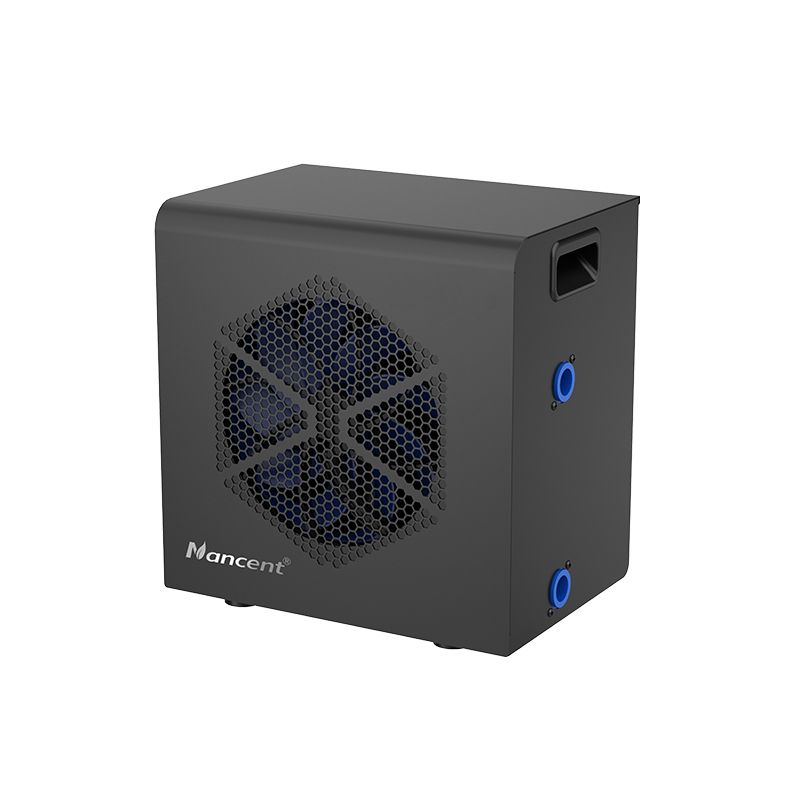

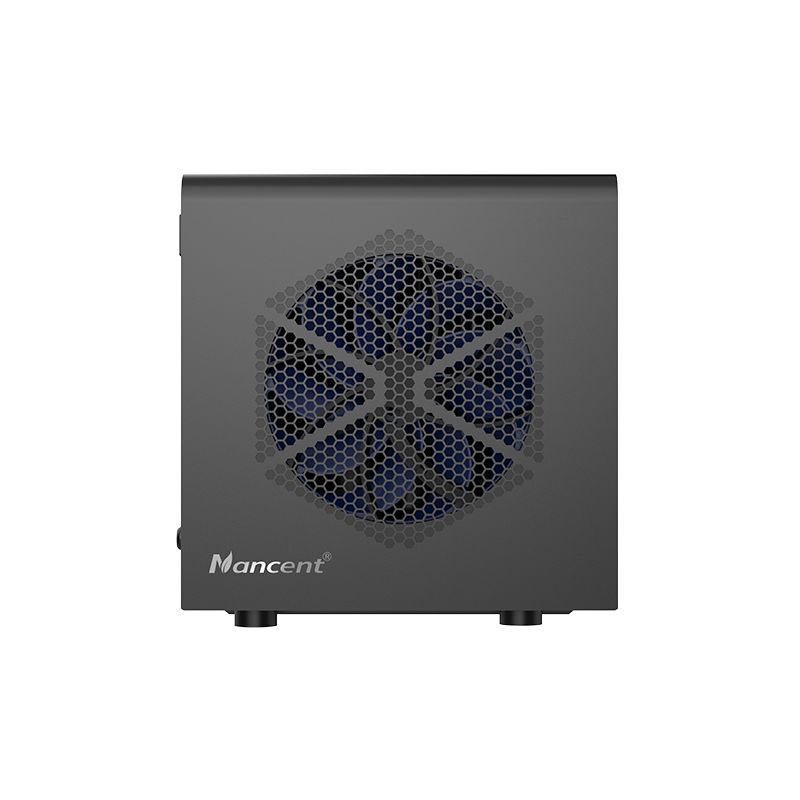

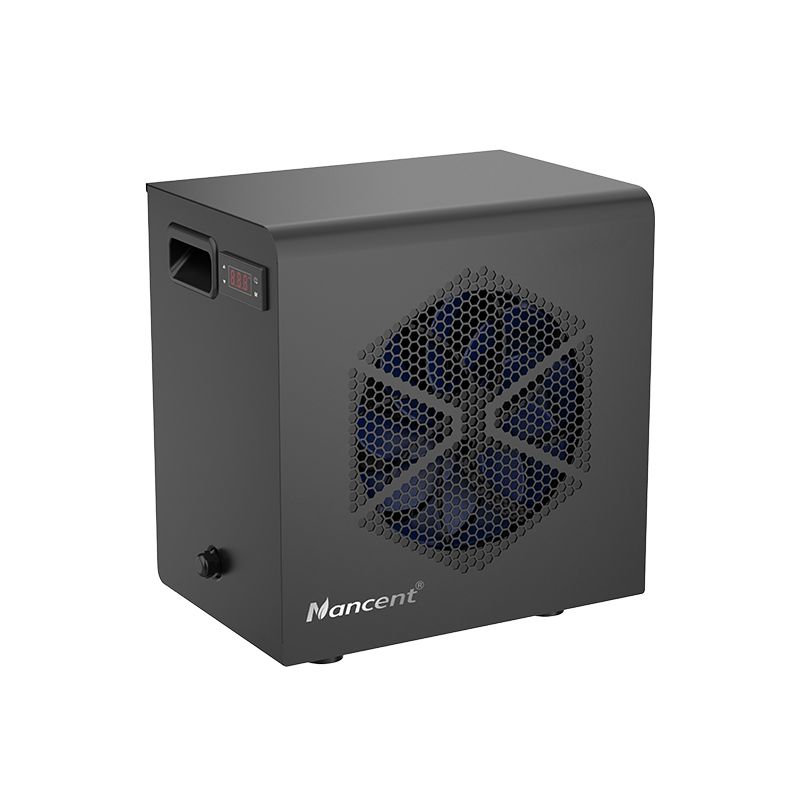

Introducing Our Mini Pool Heat Pump
Our Mini Pool Heat Pump offers a compact, efficient, and user-friendly solution for heating smaller pools. Developed with years of expertise and a commitment to excellence, this product ensures both comfort and energy savings, reflecting our high standards of experience, authoritativeness, and trustworthiness.
Engineered with cutting-edge noise reduction technology, our Mini Pool Heat Pump guarantees quiet operation—ideal for residential and commercial settings alike. Enjoy the benefits of a swimming pool heat pump that works seamlessly, ensuring that you and your neighbors experience a disturbance-free environment.
The intelligently designed Mini Pool Heat Pump features a compact and lightweight structure, making it perfect for homes or spaces with limited room. Its easy installation process means you can quickly integrate this efficient solution into your pool area, saving both time and effort.
Crafted with a modular design and robust construction, our Mini Pool Heat Pump is exceptionally easy to maintain. This user-friendly maintenance ensures hassle-free operation and long-term reliability, underscoring our commitment to quality and customer satisfaction.
Experience superior energy efficiency and significant cost savings with our Mini Pool Heat Pump. Designed to optimize performance for smaller pools, it delivers consistent heating while reducing overall energy consumption. Whether you refer to it as a mini pool heat pump or a swimming pool heat pump, this product stands as a testament to our expertise and dedication to innovative, sustainable solutions.
Inverter Parameters
| Model: NF- | 30PR3-ID-M | 40PR3-ID-M | 50PR3-ID-M |
| Heating temperatuer range(℃) | 9-40 | 9-40 | 9-40 |
| Cooling temperatuer range(℃) | 8-28 | 8-28 | 8-28 |
| Operating range(℃) | -10~43 | -10~43 | -10~43 |
| Heating Capacity: Ambient 27℃, Inlet/Outlet: 26/28℃, Humidity 80% | |||
| Heating Capacity (kW) | 1.30~3.50 | 1.60~4.20 | 1.90~5.00 |
| Power Input (kW) | 0.102~0.625 | 0.125~0.750 | 0.146~0.833 |
| COP | 12.7~5.6 | 12.8~5.6 | 13.0~6.0 |
| Heating Capacity: Ambient 15℃, Inlet/Outlet: 26/28℃, Humidity 70% | |||
| Heating Capacity (kW) | 0.80~2.40 | 1.10~3.00 | 1.40~3.60 |
| Power Input (kW) | 0.114~0.571 | 0.157~0.714 | 0.194~0.818 |
| COP | 7.0~4.2 | 7.0~4.2 | 7.2~4.4 |
| Heating Capacity: Ambient 5℃, Inlet/Outlet: 26/28℃, Humidity 70% | |||
| Heating Capacity (kW) | 1.70 | 2.11 | 2.54 |
| Power Input (kW) | 0.486 | 0.603 | 0.706 |
| COP | 3.5 | 3.5 | 3.6 |
| Heating Capacity: Ambient 0℃, Inlet/Outlet: 26/28℃, Humidity 70% | |||
| Heating Capacity (kW) | 1.40 | 1.85 | 2.36 |
| Power Input (kW) | 0.438 | 0.578 | 0.715 |
| COP | 3.2 | 3.2 | 3.3 |
| Heating Capacity: Ambient -10℃, Inlet/Outlet: 26/28℃, Humidity 70% | |||
| Heating Capacity (kW) | 1.06 | 1.41 | 1.80 |
| Power Input (kW) | 0.505 | 0.641 | 0.720 |
| COP | 2.1 | 2.2 | 2.5 |
| Cooling Capacity: Ambient 35℃, Inlet/Outlet: 27/-℃ | |||
| Cooling Capacity (kW) | 0.70~2.00 | 1.00~2.50 | 1.50~3.00 |
| Power Input (kW) | 0.140~0.667 | 0.200~0.833 | 0.300~1.000 |
| EER | 5.0~3.0 | 5.0~3.0 | 5.0~3.0 |
| General Informations | |||
| Max Power Input (kW) | 1.0 | 1.2 | 1.5 |
| Max Current (A) | 4.5 | 5.4 | 6.8 |
| Advised Pool Size (m³) | 5~10 | 8~15 | 10~20 |
| Controller | LED Controller | ||
| Wi-Fi Function | Yes | ||
| Power Supply | 220-240V~/50Hz | ||
| Refrigerant | R32 | ||
| Compressor Brand/Type | GMCC / Rotary | ||
| Manometer | Yes | ||
| Gas Control | EEV | ||
| Heat Exchanger | Titanium Heat Exchanger | ||
| Water Pipe Connection (mm) | φ32 or φ38 | φ32 or φ38 | φ32 or φ38 |
| Water Flow (m³/h) | 1.5 | 2 | 2.5 |
| Sound Pressure Level at 1m [dB(A)] | <46 | <47 | <48 |
| Sound Pressure Level at 10m [dB(A)] | <30 | <31 | <32 |
| Net Weight（kg） | 21 | 22 | 24 |
| Gross Weight（kg） | 23 | 24 | 26 |
| Net Dimensions(L×W×H)(mm) | 420×300×430 | 420×300×430 | 470×300×430 |
| Water Pressure Drop (kPa) | 10 | 11 | 12 |
| Water Proof Level | IPX4 | IPX4 | IPX4 |
| The above data are for reference only, the specific data are subject to actual product. | |||
ON/OFF Parameters
| Model: NF- | 30PR3-M | 40PR3-M | 50PR3-M |
| Heating temperatuer range(℃) | 15-40 | 15-40 | 15-40 |
| Cooling temperatuer range(℃) | 8-28 | 8-28 | 8-28 |
| Operating range(℃) | -5~43 | -5~43 | -5~43 |
| Heating Capacity at Air 27℃,Water 26℃ Hygro 80% | |||
| Heating Capacity(kW) | 3.0 | 4.0 | 5.0 |
| Power Input(kW) | 0.538 | 0.712 | 0.862 |
| COP | 5.58 | 5.62 | 5.80 |
| Heating Capacity at Air 15℃,Water 26℃ Hygro 70% | |||
| Heating Capacity(kW) | 2.15 | 2.95 | 3.70 |
| Power Input(kW) | 0.512 | 0.702 | 0.860 |
| COP | 4.2 | 4.2 | 4.3 |
| Cooling Capacity at Air 35℃ Water 27℃ | |||
| Cooling Capacity(kW) | 1.85 | 2.47 | 3.17 |
| Power Input(kW) | 0.617 | 0.823 | 1.057 |
| EER | 3.0 | 3.0 | 3.0 |
| General Informations | |||
| Max Power Input(kW) | 0.93 | 1.21 | 1.50 |
| Max Current(A) | 4.3 | 5.6 | 6.9 |
| Advised Pool Size (m³) | 5~10 | 8~15 | 10~20 |
| Display | LED Controller | ||
| Wi-Fi Function | Yes（Optional） | ||
| Power Supply | 220-240V~/50Hz | ||
| Refrigerant | R32 | ||
| Compressor Brand/Type | Gree/Rotary | GMCC/Rotary | GMCC/Rotary |
| Manometer | NO（Optional） | ||
| Gas Control | Capillary | ||
| Water heat Exchanger | Titanium | Titanium | Titanium |
| Water Pipe Connection (mm) | φ32 or φ38 | φ32 or φ38 | φ32 or φ38 |
| Water Flow Volume(m3/h) | 1.5 | 2 | 2.5 |
| Sound Pressure Level at 1m [dB(A)] | <46 | <47 | <48 |
| Sound Pressure Level at 10m [dB(A)] | <30 | <31 | <32 |
| Net Weight(kg) | 23 | 24 | 28 |
| Gross Weight(kg) | 25 | 26 | 31 |
| Net Dimensions(L×W×H)(mm) | 420×290×430 | 420×290×430 | 470×290×430 |
| Water Pressure Drop (kPa) | 10 | 11 | 12 |
| Water Proof Level | IPX4 | IPX4 | IPX4 |
| The above data are for reference only, the specific data are subject to actual product. | |||
