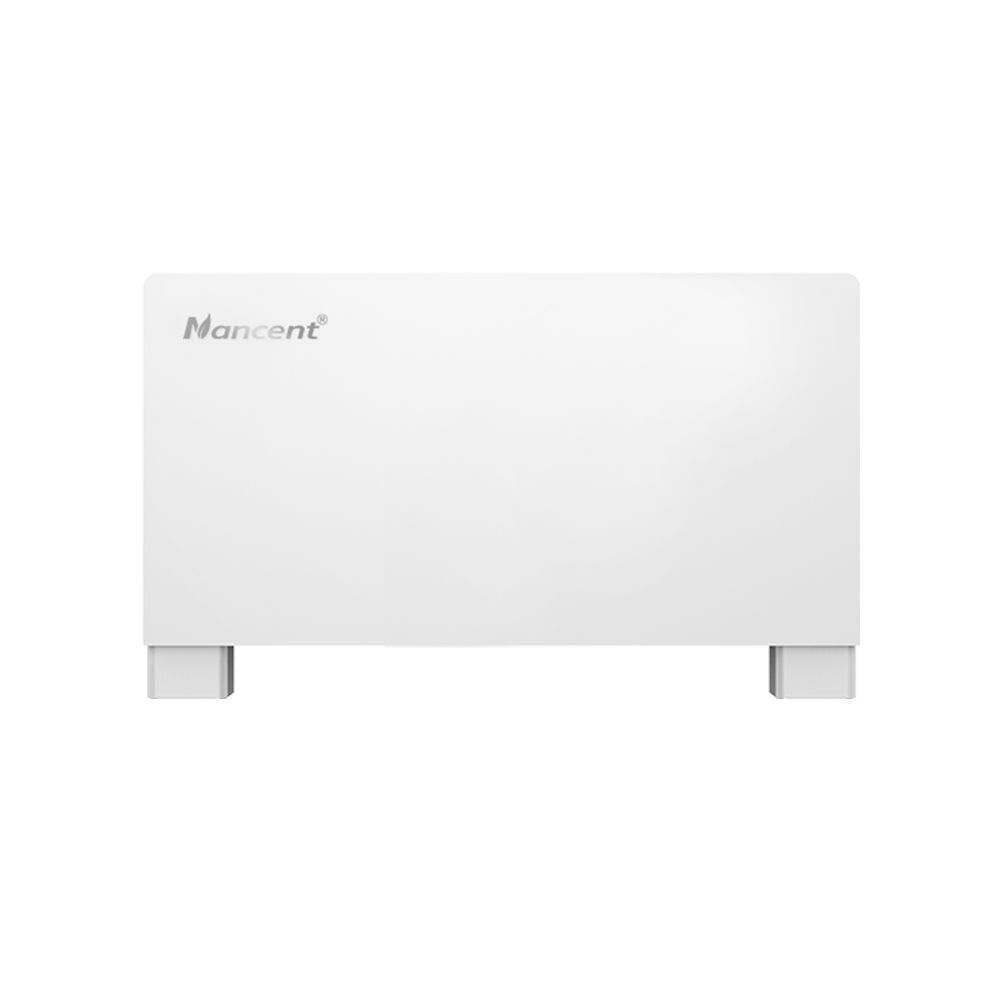

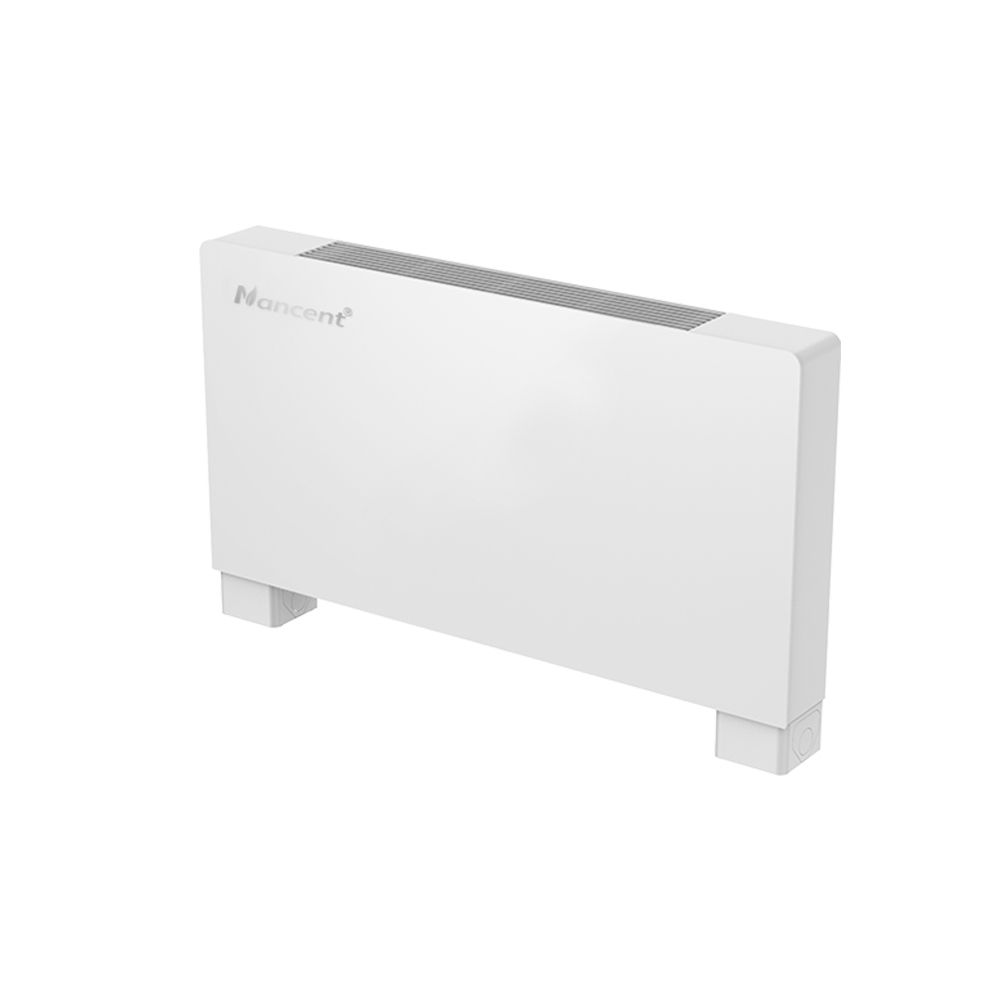

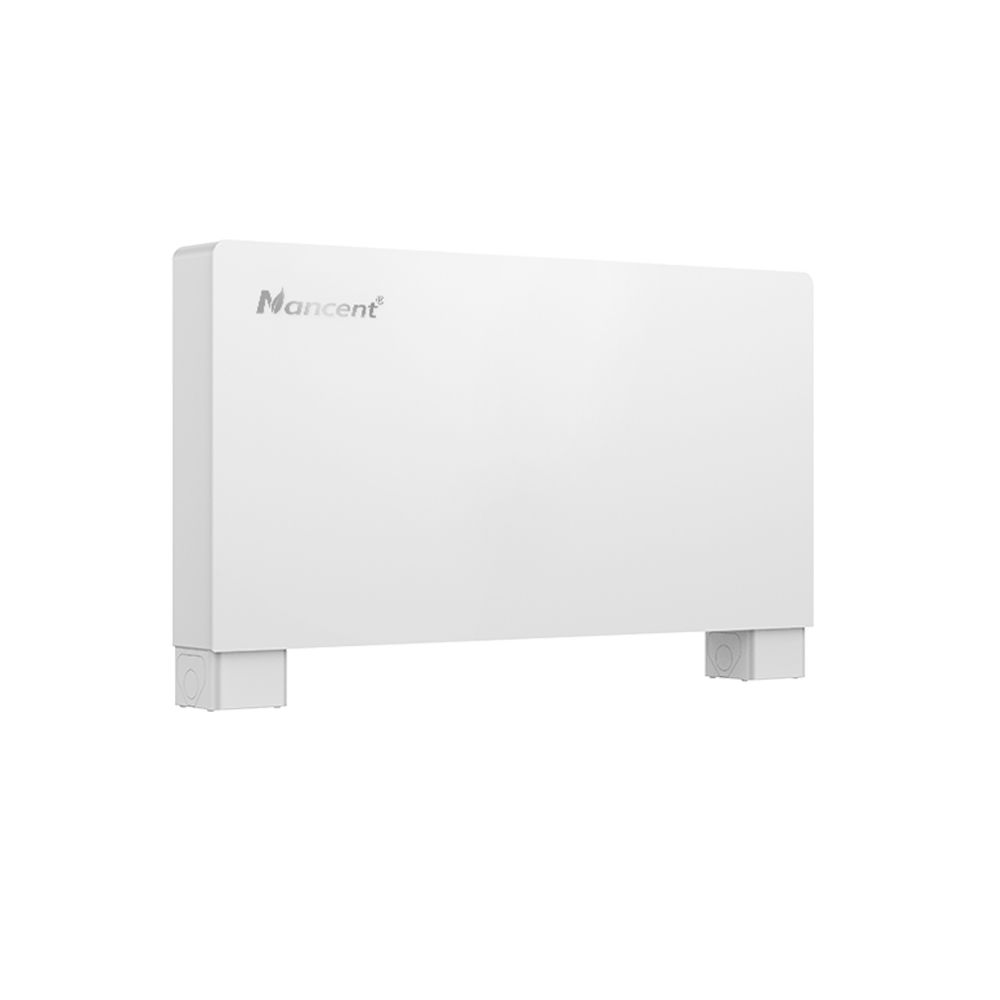

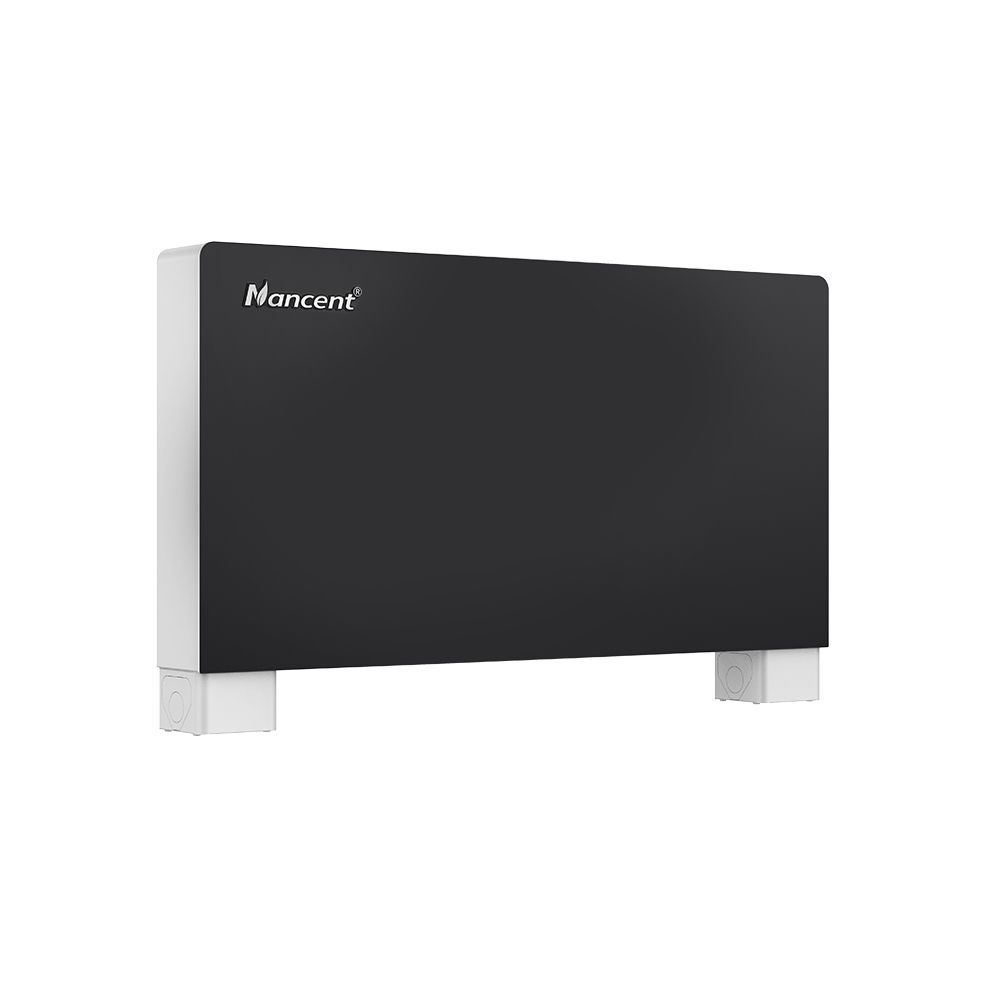

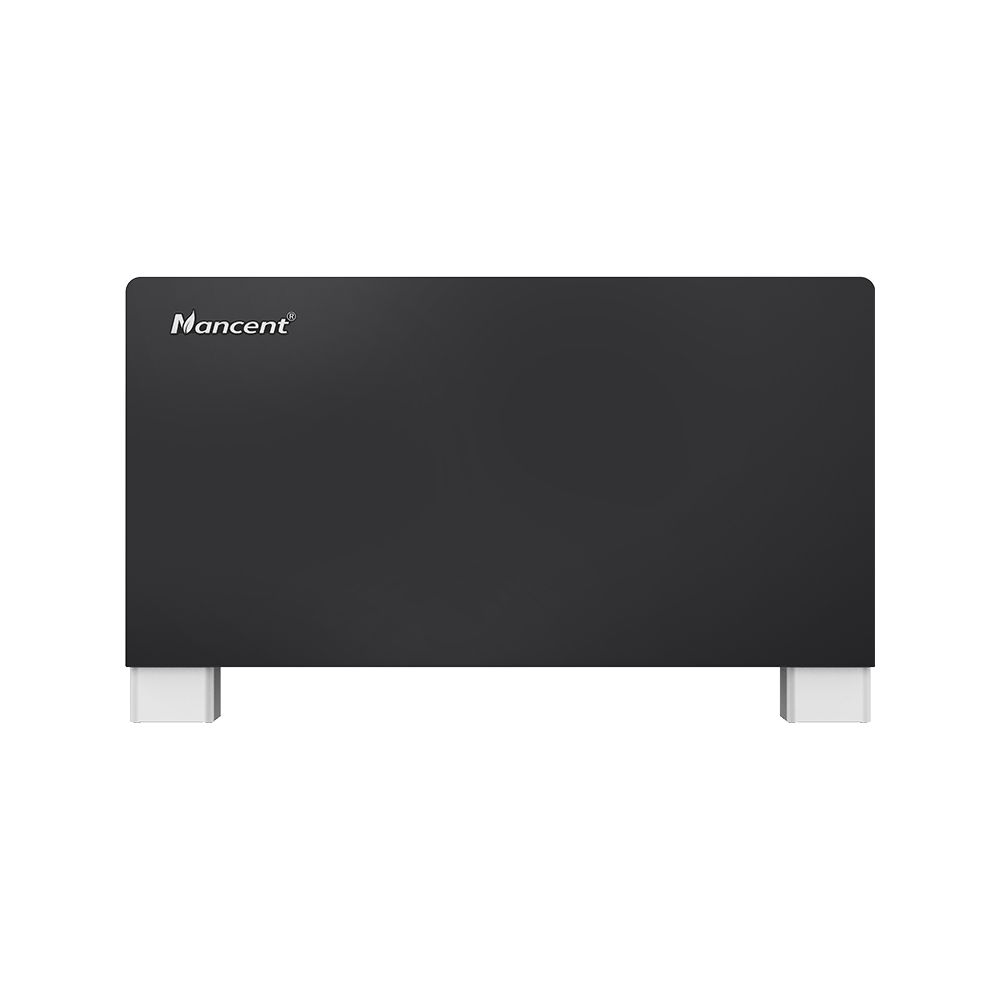

Ultra-slim Fan Coil Unit

Ultra-thin fan coil unit is a perfect blend of graceful style and powerful functionality.

Ultra-thin design:

Maximize your space with our super-slim design (12cm), fitting perfectly into any room.

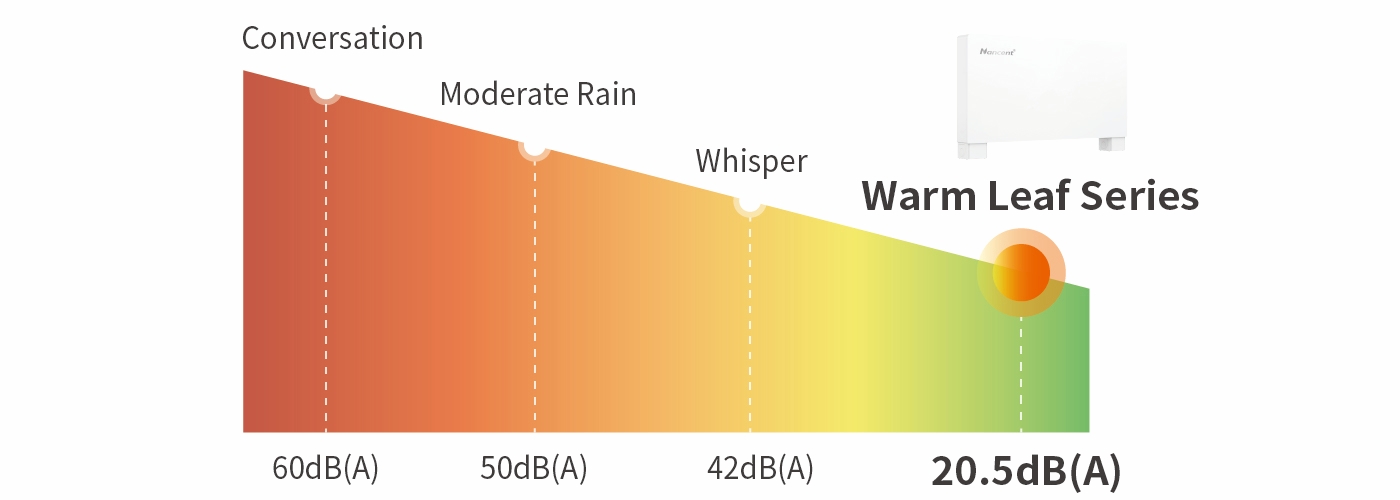

Whisper-quiet operation:

Create peaceful nights with our ultra-low noise technology [20.5dB(A)], making you a comfortable sleep.

Super-simple installation:

It's very easy to install the unit with our universal design for left and right plumbing. No need to choose between left and right plumbing models.

Inquire Now

Details European Parameters North American Parameters

ELEGANT APPEARANCE

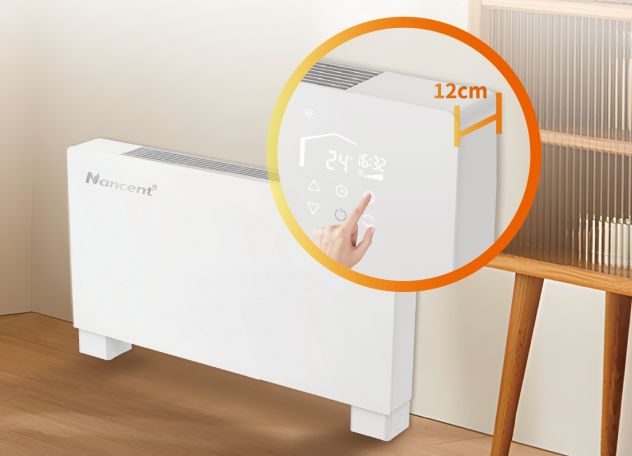

Ultra Thin Body

The cabinet is extremely slim with a thickness of only 12 cm. It can be installed in any residential environment and save more space than other fan coil units.

Hideable Touch Control

The screen is designed with hideable touch control buttons and LED backlight display. It creates bright and clear images that appear to be floating in mid-air.

EXTREME COMFORT

Super Silence

Thanks to the continuous automatic adjustment of the DC fan motor, the fan speed will gradually decrease as it approaches the target temperature. At the same time, complete sound insulation layers can further reduce the noise.

Ultra-slim Fan Coil Unit

Comfortable Sleep

In sleep mode, the fan will gradually stop or run at a low speed to reduce noise. At the same time, the display will turn off shortly after activating sleep mode to avoid affecting your sleep. And the unit will operate in a low-power mode in sleep mode, making it more energy-saving.

Ultra-slim Fan Coil Unit

Various Control Methods

WARM LEAF SERIES can be controlled by built-in controller, remote controller and smart phone APP with a WIFI connection.

Ultra-slim Fan Coil Unit

Flexible Installation Method

Ultra-slim Fan Coil Unit

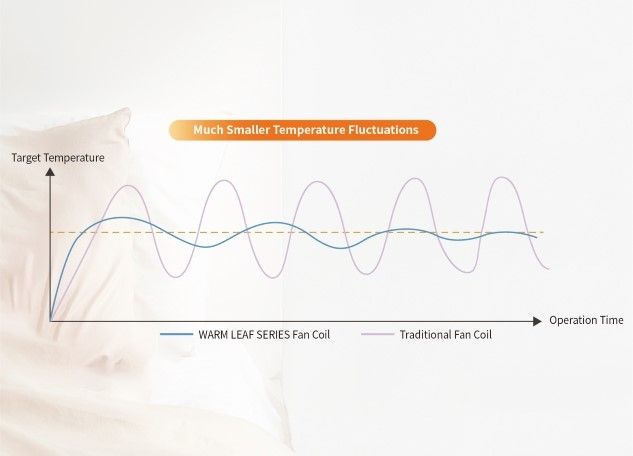

Smaller Temperature Fluctuation

WARM LEAF SERIES can heat at a lower water temperature and reduce the fan speed when it is close to the target temperature, thereby achieving smaller room temperature fluctuations and providing better comfort for users.

European Parameters

Model: NF-		20TFC	30TFC	45TFC	55TFC	65TFC	80TFC
*Rated Heating Capacity (W)		920	1760	2180	2910	3570	4410
**Rated Heating Capacity (W)		1020	2010	2420	3240	3880	4780
***Rated Heating Capacity (W)		1720	3360	4100	5480	6430	7910
*Rated Cooling Capacity (W)		800	1520	1840	2560	3480	4330
Rated Air Flow Volume (m³/h)		160	320	410	520	630	750
Sound Pressure Level [dB(A)]		36	42	43	44	47	50
Power Supply		220-240V~/50Hz
Rated Power Input (W)		16	23	26	30	43	46
Rated Current (A)		0.07	0.09	0.10	0.11	0.19	0.20
Fan	Type	Cross-Flow Fan
Fan	Quantity (pcs)	1	1	1	1	2	2
Motor	Type	Low-Noise DC Motor
Motor	Quantity (pcs)	1	1	1	1	2	2
4-Way 3-Position Hydraulic Valve		Optional
Water Flow Volume (L/h)		140	260	310	440	600	740
Water Pressure Drop (kPa)		11.20	14.60	19.04	24.82	32.35	36.91
Water Inlet and Outlet Pipe (mm)		DN20	DN20	DN20	DN20	DN20	DN20
Condensate Pipe (mm)		16	16	16	16	16	16
Net Dimensions [L×W×H (mm)]		665×120×555	865×120×555	1065×120×555	1265×120×555	1490×120×555	1490×120×555
Note: Heating Condition: Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. (Inlet/Outlet): 45°C/40°C. Heating Condition: Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. (Inlet/Outlet): 50°C/-. *Heating Condition: Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. (Inlet/Outlet): 70°C/-. Cooling Condition: Ambient Temp. (DB/WB): 27°C/19°C, Water Temp. (Inlet/Outlet): 7°C/12°C .
The above data are for reference only, the specific data are subject to actual product.

North American Parameters

Model: NF-		20TFC-116	30TFC-116	45TFC-116	55TFC-116	65TFC-116	80TFC-116
*Rated Heating Capacity (Btu/h)		3139	6005	7438	9929	12181	15047
**Rated Heating Capacity (Btu/h)		3480	6858	8257	11055	13239	16310
***Rated Heating Capacity (Btu/h)		5869	11465	13990	18698	21940	26990
*Rated Cooling Capacity (Btu/h)		2730	5186	6278	8735	11874	14774
Rated Air Flow Volume (gal/min）		704	1409	1805	2289	2774	3302
Sound Pressure Level [dB(A)]		36	42	43	44	47	50
Power Supply		110-120V~/60Hz
Rated Power Input (Btu/h)		54.6	78.5	88.7	102.4	146.7	157
Rated Current (A)		0.07	0.09	0.10	0.11	0.19	0.20
Fan	Type	Cross-Flow Fan
Fan	Quantity（pcs）	1	1	1	1	2	2
Motor	Type	Low-Noise DC Motor
Motor	Quantity（pcs)	1	1	1	1	2	2
4-Way 3-Position Hydraulic Valve		Optional
Water Flow Volume (gal/min)		0.62	1.14	1.36	1.94	2.64	3.26
Water Pressure Drop (psi)		1.62	2.12	2.76	3.60	4.70	5.35
Water Inlet and Outlet Pipe(inch)		G3/4"	G3/4"	G3/4"	G3/4"	G3/4"	G3/4"
Condensate Pipe (inch)		0.63	0.63	0.63	0.63	0.63	0.63
Net Dimensions [L×W×H(inch)]		26.18×4.72×21.85	34.05×120×555	41.93×4.72×21.85	49.80×4.72×21.85	58.66×4.72×21.85	58.66×4.72×21.85
Note: Heating Condition: Ambient Temp. (DB/WB): 68℉/59℉, Water Temp. (Inlet/Outlet): 113℉/103℉. Heating Condition: Ambient Temp. (DB/WB): 68℉/59℉, Water Temp. (Inlet/Outlet): 122℉/-. *Heating Condition: Ambient Temp. (DB/WB): 68℉/59℉, Water Temp. (Inlet/Outlet): 158℉/-. Cooling Condition: Ambient Temp. (DB/WB): 80℉/67℉, Water Temp. (Inlet/Outlet): 45℉/55℉.
The above data are for reference only, the specific data are subject to actual product.
