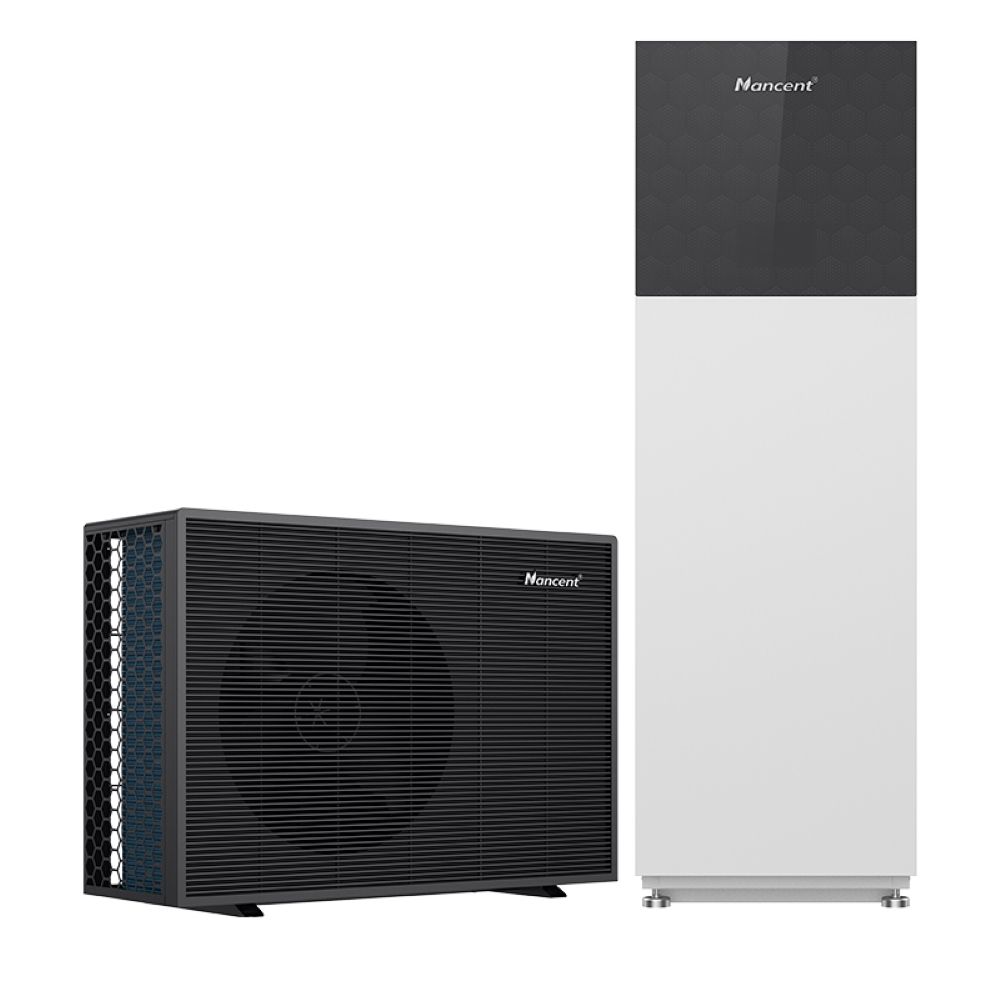

Simplify your home's space heating/cooling and sanitary hot water system with our space-saving, easy-to-install integrated heat pump with hydraulic module.
Integrated Design:
Features a seamlessly combined hot water storage tank and buffer tank, offering a comprehensive solution in a single unit.
Increased Reliability:
The integrated design with fewer external connections reduces potential points of failure, increasing overall system reliability and longevity.

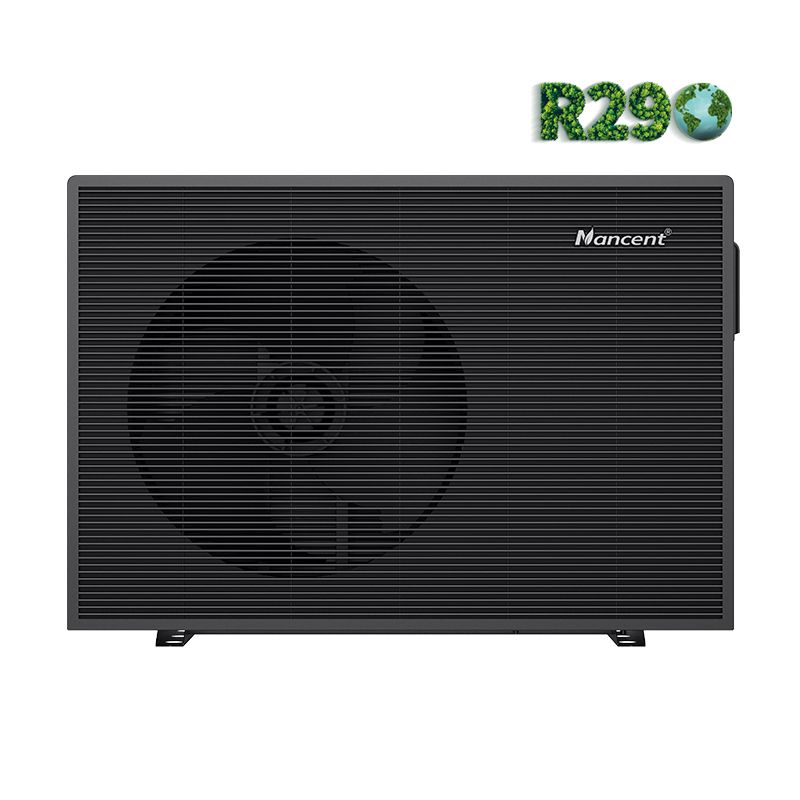

NATURAL REFRIGERANT R290
R290 is a highly pure propane comes from nature and it has almost no adverse effects on the environment. With low GWP value of only 3, Nancent R290 heat pump greatly contributes to the reduction of carbon emission and help achieve the global goal of carbon neutrality.

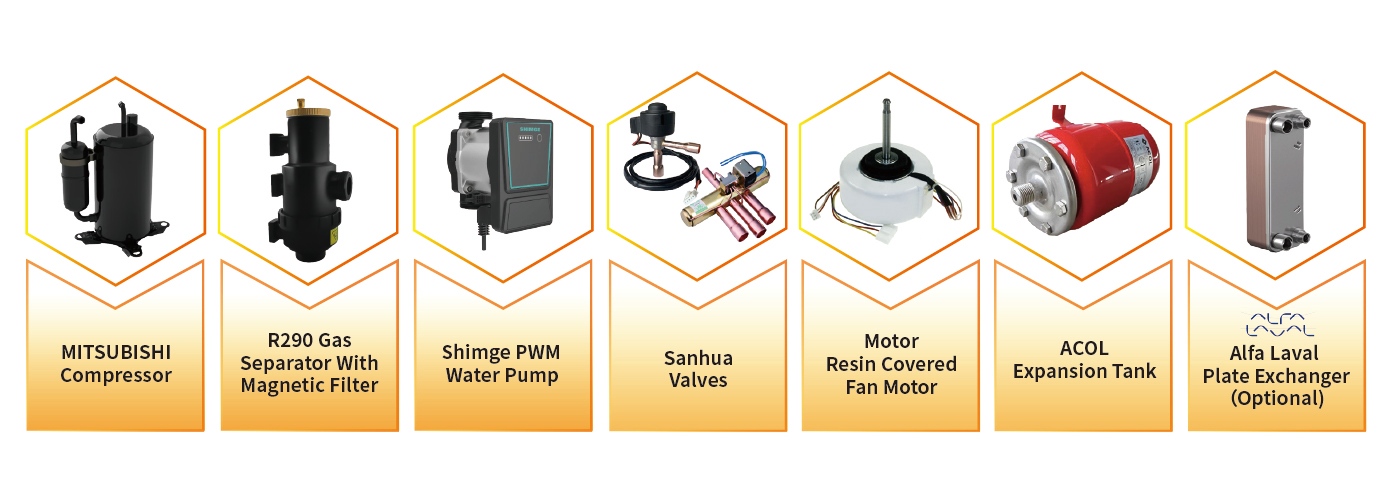

QUALITY COMPONENTS
Warm Mate Series R290 heat pump chooses the famous & international brand components to make sure the quality and reliability of the products.
IOT PLATFORM
Login into IOT Platform to check the realtime running status, historical records and control the heat pump remotely.
OTA
The software can be updated over the air which is very easy to deal with the after sales in case there is a software bug.
HEMS READY
With HEMS Ready, Warm Mate Series R290 heat pump can connect the PV system and Battery system, controlled by Home Energy Manager /Smart Meter to maximize the use of energy from PV and Battery.
Nancent's self-developed HEMS system empower users to take charge of their energy management system, offering a gateway to a smarter energy future.
For better versatility, Nancent products are compatible with variety of energy management systems, they can also seamlessly adapt to user's existing photovoltaic applications.
SG Ready
Warm Mate Series R290 heat pump is available to connect your smart grid system so that the unit can use can use off-peak electricity to reduce the energy bill. At the same time, the heat pump can also work smartly based on the electricity price to realize the lowest all the day.
SMART APP CONTROL
Smart APP provides long-distance control and users can control the heat pump no matter where they are.

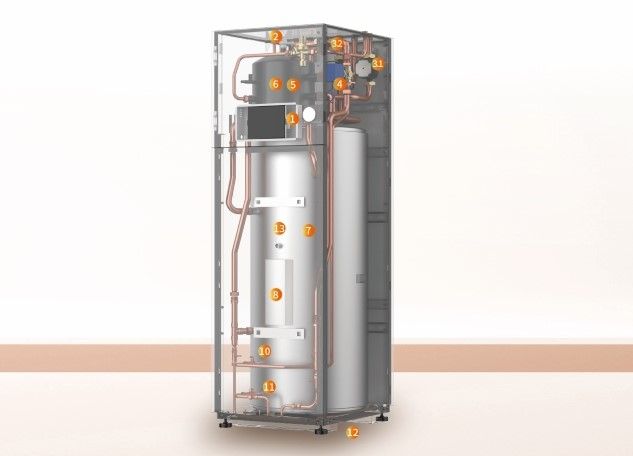

INTEGRATED DESIGN
Hydraulic Module
1.7 Inch Touch Color Screen Controller
2.Automatic Exhaust Valve
3.1.Secondary Water Pump
3.2.Primary Water Pump
4.Electric 3-Way Valve
5.Electric Heater For Buffer Tank
6.Buffer Tank
7.DHW Tank
8.Electric Heater For DHW Tank
9.Automatic Water Refill Valve
10.Check Valve
11.Ball Valve
12.Adjustable Foot
13.Temperature Sensor Port

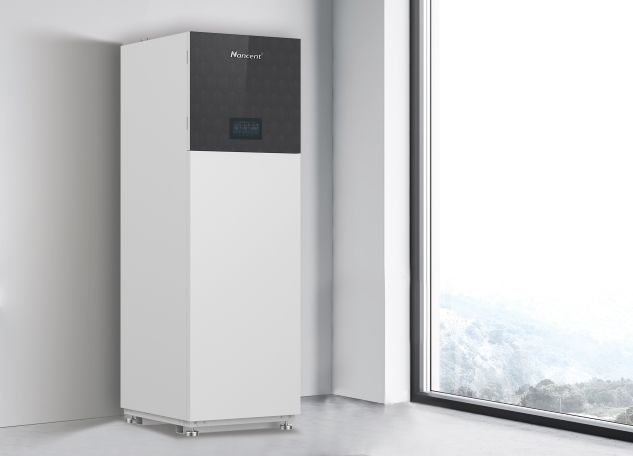

INTEGRATED DESIGN
Benefits
Integrated indoor unit with a hot water storage tank and buffer tank.
Saves space in the technical room with a small footprint.
Installation time reduced with pre-installed components.
Harmonized with other household appliances for a cohesive exterior.
Heat Pump Parameters
| Mode: NF- | 40HR2-ID | 60HR2-ID | 80HR2-ID | 120HR2-ID | 160HR2-ID | 120HR2-TID | 160HR2-TID | 180HR2-TID | 200HR2-TID |
| Prated Capacity for SCOP Average Climate (kW) | 3.10 | 4.2 | 6.2 | 7.4 | 9.9 | 7.4 | 9.9 | 13.9 | 16.80 |
| Pmax Capacity(KW) 7/6 30°C/35°C | 4.35 | 6.12 | 8.05 | 12.03 | 16.05 | 12.03 | 16.05 | 18.02 | 20.02 |
| [Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 30°C/35°C. | |||||||||
| Heating Capacity (kW) | 1.48~3.95 | 1.76~4.71 | 2.34~6.27 | 3.26~8.72 | 4.58~12.24 | 3.26~8.72 | 4.58~12.24 | 5.29~14.15 | 5.68~15.2 |
| Power Input (kW) | 0.27~0.77 | 0.33~0.97 | 0.46~1.27 | 0.65~1.81 | 0.91~2.51 | 0.65~1.81 | 0.91~2.51 | 1.03~2.86 | 1.13~3.17 |
| COP | 5.42~5.16 | 5.28~4.85 | 5.14~4.95 | 4.98~4.82 | 5.04~4.88 | 4.98~4.82 | 5.04~4.88 | 5.15~4.95 | 5.01~4.8 |
| [Space Heating] Ambient Temp. (DB/WB): 2 °C/ 1 °C, Water Temp. (Inlet/Outlet): 30°C/35°C. | |||||||||
| Heating Capacity (kW) | 1.26~3.96 | 1.5~4.72 | 1.99~6.28 | 2.77~8.74 | 3.89~12.26 | 2.77~8.74 | 3.89~12.26 | 4.5~14.18 | 4.83~15.23 |
| Power Input (kW) | 0.25~0.83 | 0.31~1.06 | 0.42~1.38 | 0.61~1.97 | 0.84~2.73 | 0.61~1.97 | 0.84~2.73 | 0.95~3.11 | 1.05~3.45 |
| COP | 4.99~4.75 | 4.86~4.46 | 4.73~4.55 | 4.58~4.43 | 4.64~4.49 | 4.58~4.43 | 4.64~4.49 | 4.74~4.55 | 4.61~4.42 |
| [Space Heating] Ambient Temp. (DB/WB): - 7°C/ - 8°C, Water Temp. (Inlet/Outlet): 30°C/35°C. | |||||||||
| Heating Capacity (kW) | 0.81~3.48 | 0.97~4.15 | 1.29~5.53 | 1.79~7.69 | 2.52~10.79 | 1.79~7.69 | 2.52~10.79 | 2.91~12.48 | 3.13~13.4 |
| Power Input (kW) | 0.22~0.99 | 0.27~1.26 | 0.37~1.64 | 0.53~2.35 | 0.73~3.25 | 0.53~2.35 | 0.73~3.25 | 0.83~3.71 | 0.92~4.11 |
| COP | 3.69~3.51 | 3.59~3.3 | 3.5~3.37 | 3.39~3.28 | 3.43~3.32 | 3.39~3.28 | 3.43~3.32 | 3.5~3.37 | 3.41~3.26 |
| [Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 40°C/45°C. | |||||||||
| Heating Capacity (kW) | 1.42~3.79 | 1.69~4.52 | 2.25~6.02 | 3.13~8.37 | 4.39~11.75 | 3.13~8.37 | 4.39~11.75 | 5.08~13.58 | 5.46~14.59 |
| Power Input (kW) | 0.34~0.95 | 0.42~1.21 | 0.57~1.58 | 0.82~2.26 | 1.13~3.13 | 0.82~2.26 | 1.13~3.13 | 1.28~3.56 | 1.41~3.95 |
| COP | 4.17~3.97 | 4.07~3.73 | 3.96~3.81 | 3.83~3.71 | 3.88~3.76 | 3.83~3.71 | 3.88~3.76 | 3.97~3.81 | 3.86~3.7 |
| [Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 47°C/55°C. | |||||||||
| Heating Capacity (kW) | 1.35~3.6 | 1.61~4.3 | 2.14~5.72 | 2.97~7.95 | 4.17~11.16 | 2.97~7.95 | 4.17~11.16 | 4.83~12.9 | 5.18~13.86 |
| Power Input (kW) | 0.39~1.09 | 0.48~1.38 | 0.65~1.81 | 0.93~2.58 | 1.29~3.57 | 0.93~2.58 | 1.29~3.57 | 1.46~4.07 | 1.62~4.51 |
| COP | 3.47~3.3 | 3.38~3.1 | 3.29~3.17 | 3.19~3.08 | 3.23~3.12 | 3.19~3.08 | 3.23~3.12 | 3.3~3.17 | 3.21~3.07 |
| [Space Cooling] Ambient Temp. (DB/WB): 35°C / 24, Water Temp. (Inlet/Outlet): 23°C/18°C. | |||||||||
| Cooling Capacity (kW) | 1.78~4.76 | 2.12~5.68 | 2.83~7.56 | 3.93~10.51 | 5.52~14.75 | 3.93~10.51 | 5.52~14.75 | 6.38~17.05 | 6.85~18.32 |
| Power Input (kW) | 0.3~0.85 | 0.37~1.07 | 0.5~1.4 | 0.72~2 | 1~2.77 | 0.72~2 | 1~2.77 | 1.14~3.16 | 1.25~3.5 |
| EER | 5.91~5.62 | 5.76~5.29 | 5.6~5.4 | 5.43~5.25 | 5.49~5.32 | 5.43~5.25 | 5.49~5.32 | 5.61~5.4 | 5.46~5.23 |
| [Space Cooling] Ambient Temp. (DB/WB): 35°C / 24, Water Temp. (Inlet/Outlet): 12°C/7°C. | |||||||||
| Cooling Capacity (kW) | 1.45~3.87 | 1.73~4.62 | 2.3~6.14 | 3.2~8.55 | 4.49~12 | 3.2~8.55 | 4.49~12 | 5.19~13.87 | 5.57~14.9 |
| Power Input (kW) | 0.39~1.15 | 0.48~1.46 | 0.66~1.91 | 0.94~2.73 | 1.38~4.04 | 0.94~2.73 | 1.38~4.04 | 1.48~4.53 | 1.64~5.1 |
| EER | 3.67~3.35 | 3.58~3.15 | 3.49~3.22 | 3.39~3.13 | 3.26~2.97 | 3.39~3.13 | 3.26~2.97 | 3.5~3.06 | 3.41~2.92 |
| [Hot Water] Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. from 15°C to 55°C. | |||||||||
| Heating Capacity (kW) | 4.18 | 4.98 | 6.63 | 9.23 | 12.95 | 9.23 | 12.95 | 14.97 | 16.08 |
| Power Input (kW) | 0.90 | 1.10 | 1.42 | 2.04 | 2.88 | 2.04 | 2.88 | 3.22 | 3.57 |
| COP | 4.62 | 4.54 | 4.66 | 4.53 | 4.49 | 4.53 | 4.49 | 4.65 | 4.51 |
| Max. Power Input (kW) | 1.53 | 1.94 | 2.53 | 3.62 | 5.02 | 3.62 | 5.02 | 5.72 | 6.33 |
| Max. Running Current (A) | 6.66 | 8.44 | 11.01 | 15.73 | 21.81 | 6.14 | 8.52 | 9.71 | 10.75 |
| Max. Outlet Water Temp. (°C) | 75 | ||||||||
| Heating Operating Ambient Temp. Range (℃) | -25~45 | ||||||||
| Cooling Operating Ambient Temp. Range (℃) | 15~48 | ||||||||
| Power Supply | 380-415V/3N~/ 50Hz | ||||||||
| Rated Water Flow (m³/h) | 0.68 | 0.81 | 1.08 | 1.50 | 2.11 | 1.50 | 2.11 | 2.43 | 2.61 |
| Water Pressure Drop (kPa) | 8 | 10 | 15 | 22 | 30 | 22 | 30 | 38 | 42 |
| Expansion Tank (L) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 5 | 5 |
| Compressor Brand | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi |
| Circulating Pump Brand | GRUNDFOS | GRUNDFOS | GRUNDFOS | GRUNDFOS | GRUNDFOS | GRUNDFOS | GRUNDFOS | GRUNDFOS | GRUNDFOS |
| Fan Quantity | 1 | 2 | |||||||
| Display | 4-inch Color Touch Screen | ||||||||
| Wi-Fi Function | Yes | ||||||||
| ErP Level (35°C) | A+++ | ||||||||
| ErP Level (55°C) | A++ | ||||||||
| Refrigerant Type | R290 | ||||||||
| Sound Pressure Level dB(A) at 1m | 33~40 | 34~41 | 35~42 | 36~44 | 37~45 | 35~44 | 37~45 | 41~49 | 42~50 |
| Sound power level dB(A) | 48~55 | 49~56 | 50~57 | 51~59 | 52~60 | 51~59 | 52~60 | 56~64 | 57~65 |
| Water Pipe Connection (mm) | DN32 | ||||||||
| Water Proof Class | IPX4 | ||||||||
| Net Weight（kg） | 70 | 70 | 85 | 105 | 115 | 105 | 125 | 175 | 175 |
| Shipping Dimensions (L×W×H) (mm) | 1106×418×826 | 1320×453×988 | 1310×455×1494 | ||||||
| The above data are for reference only, the specific data are subject to actual product. | |||||||||
Hydraulic Module Parameters
| Model: NF- | 200-20HMS1 | 200-20HMS2 | N-NHMS1 |
| DHW Tank (L) | 200 | 200 | / |
| Buffer Tank (L) | 20 | 20 | / |
| Primary Water Pump | Built-In (PWM) | Built-In (PWM) | Built-In (PWM) |
| Primary Water Pump Max. Water Head | 9/12(Optional) | 9/12(Optional) | 9/12(Optional) |
| Secondary Water Pump | Built-In (PWM) | Built-In (PWM) | Built-In (PWM) |
| Primary Water Pump Max. Water Head(m) | 9/12(Optional) | 9/12(Optional) | 9/12(Optional) |
| Hot Water Return Pump Water Head（m） | / | / | 6(Optional) |
| 7 Inches Touch Screen Controller | Yes | Yes | Yes |
| Water Pressure Gauge | Yes | Yes | / |
| Power Supply | 220-240V~/50Hz | 380-415V/3N~/50Hz | 220-240V~/50Hz&380-415V/3N~/50Hz |
| 3- Way Valve | Yes | Yes | Yes |
| Electric Heater in DHW Tank (kW) | 3 | 3 | / |
| Electric Heater in Buffer Tank (kW) | 3 | 9 | / |
| Electric Heater in Water Pipe (kW) | / | / | 3~9 |
| DHW Tank Back/Supply Interface | G1/2" | G1/2" | G3/4" |
| Buffer Tank Back/Supply Interface | G1" | G1" | G1" |
| Heat Pump Back/Supply Interface | G1" | G1" | G1" |
| Solar Coil Back/Supply Interface(Optional) | G1" | G1" | / |
| Water Refill Port *1 | G3/4" | G3/4" | / |
| Dimension of DHW Heating Coil | φ32x25m | φ32x25m | / |
| Dimension of Solar Heating Coil(Optional) | φ32x15m | φ32x15m | / |
| Maximum Power(12 m Water Pump) (kW) | 6.5 | 12.5 | 3.3kw/9.3kw |
| Maximum current(12 m Water Pump) (A) | 28.26 | 21.23 | 14.35/15.76 |
| Net Dimension (L×W×H) (mm) | 597×697×1865 | 597×697×1865 | 726×600×271 |
Related Products
Featuring a freeze-proof design and a built-in backup heater, our heat pump systems guarantee continuous warmth and reliability, even in the coldest winters.
Monobloc Space Heating Heat Pump
Providing efficient cooling, powerful heating, and reliable hot water in a single compact unit, it's the perfect solution for optimizing your home's climate and energy efficiency.

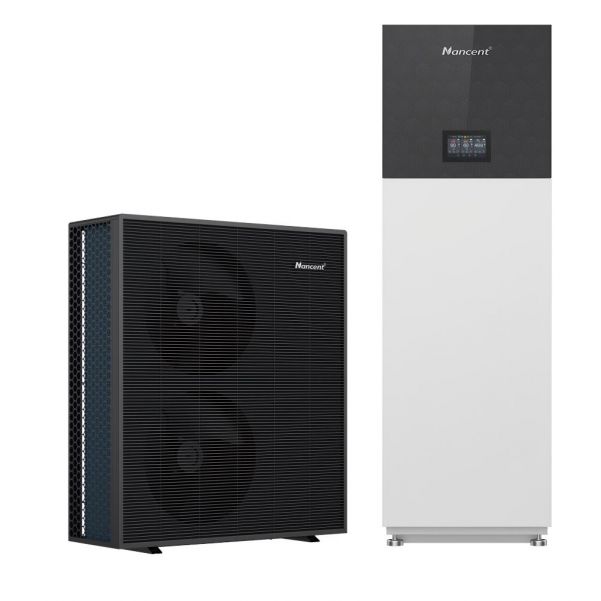

R290 Floor Heating Heat Pump with Hydraulic Module
