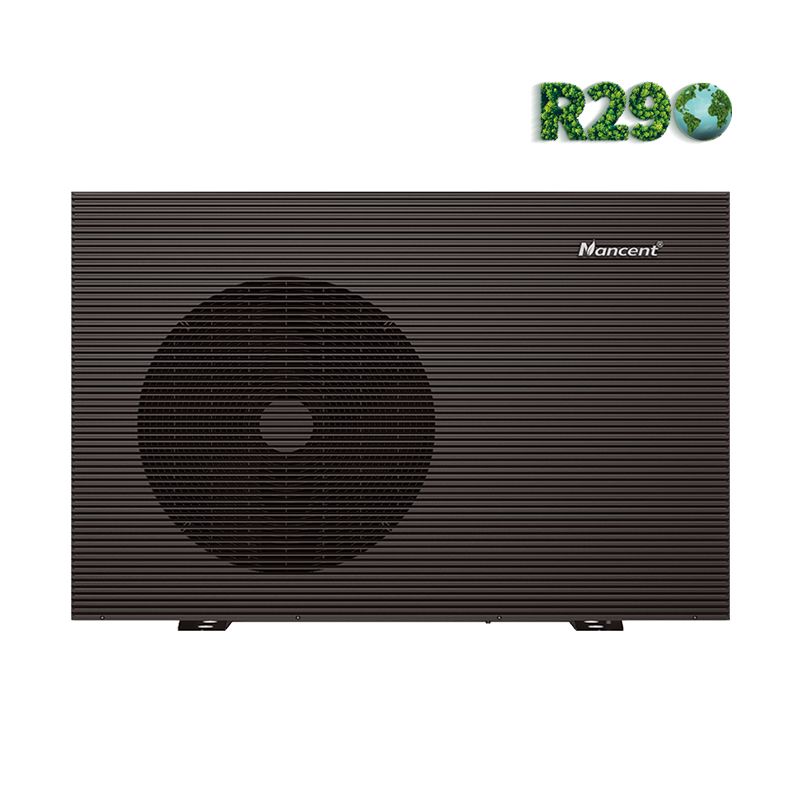

Experience optimal home comfort with our advanced heat pump, designed for energy efficiency, whisper-quiet operation, and a reduced carbon footprint.
Optimized Control Logic:
Adaptive operation and adaptive defrosting.
Ultra-Quiet Operation:
Sound pressure level of 40dB(A) - 50dB(A).
Comprehensive Explosion-Proof Design:
Ensures safety in various environments.
Parameters
| Mode: NF- | 80HR2-ID | 120HR2-ID | 160HR2-ID | 120HR2-TID | 160HR2-TID | 200HR2-TID |
| Prated Capacity (KW) For SCOP Average Climate | 6.34 | 8.89 | 12.11 | 8.89 | 12.11 | 17.07 |
| Pmax Capacity(KW) 7/6 30°C/35°C | 8.05 | 12.01 | 16.03 | 12.01 | 16.03 | 20.01 |
| [Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 30°C/35°C. | ||||||
| Heating Capacity (kW) | 1.72~6.35 | 2.41~8.91 | 3.29~12.13 | 2.41~8.91 | 3.29~12.13 | 4.64~17.1 |
| Power Input (kW) | 0.27~1.24 | 0.38~1.75 | 0.53~2.42 | 0.38~1.75 | 0.53~2.42 | 0.74~3.4 |
| COP | 6.38~5.13 | 6.32~5.08 | 6.24~5.02 | 6.32~5.08 | 6.24~5.02 | 6.26~5.03 |
| [Space Heating] Ambient Temp. (DB/WB): 2 °C/ 1 °C, Water Temp. (Inlet/Outlet): 30°C/35°C. | ||||||
| Heating Capacity (kW) | 1.46~6.36 | 2.05~8.93 | 2.79~12.15 | 2.05~8.93 | 2.79~12.15 | 3.94~17.13 |
| Power Input (kW) | 0.25~1.36 | 0.36~1.93 | 0.49~2.66 | 0.36~1.93 | 0.49~2.66 | 0.69~3.74 |
| COP | 5.81~4.67 | 5.75~4.62 | 5.68~4.57 | 5.75~4.62 | 5.68~4.57 | 5.7~4.58 |
| [Space Heating] Ambient Temp. (DB/WB): - 7°C/ - 8°C, Water Temp. (Inlet/Outlet): 30°C/35°C. | ||||||
| Heating Capacity (kW) | 0.95~5.57 | 1.33~7.81 | 1.81~10.63 | 1.33~7.81 | 1.81~10.63 | 2.55~14.99 |
| Power Input (kW) | 0.22~1.63 | 0.32~2.31 | 0.44~3.19 | 0.32~2.31 | 0.44~3.19 | 0.61~4.48 |
| COP | 4.24~3.41 | 4.2~3.38 | 4.15~3.34 | 4.2~3.38 | 4.15~3.34 | 4.16~3.34 |
| [Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 40°C/45°C. | ||||||
| Heating Capacity (kW) | 1.65~6.1 | 2.32~8.55 | 3.16~11.64 | 2.32~8.55 | 3.16~11.64 | 4.45~16.42 |
| Power Input (kW) | 0.34~1.54 | 0.48~2.19 | 0.66~3.01 | 0.48~2.19 | 0.66~3.01 | 0.92~4.24 |
| COP | 4.91~3.95 | 4.87~3.91 | 4.81~3.87 | 4.87~3.91 | 4.81~3.87 | 4.82~3.87 |
| [Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 47°C/55°C. | ||||||
| Heating Capacity (kW) | 1.6~5.91 | 2.25~8.3 | 3.06~11.3 | 2.25~8.3 | 3.06~11.3 | 4.32~15.92 |
| Power Input (kW) | 0.37~1.71 | 0.53~2.42 | 0.73~3.33 | 0.53~2.42 | 0.73~3.33 | 1.02~4.69 |
| COP | 4.31~3.46 | 4.27~3.43 | 4.22~3.39 | 4.27~3.43 | 4.22~3.39 | 4.23~3.4 |
| [Space Cooling] Ambient Temp. (DB/WB): 35°C / 24, Water Temp. (Inlet/Outlet): 23°C/18°C. | ||||||
| Cooling Capacity (kW) | 2~7.37 | 2.8~10.34 | 3.81~14.07 | 2.8~10.34 | 3.81~14.07 | 5.38~19.84 |
| Power Input (kW) | 0.29~1.34 | 0.41~1.9 | 0.57~2.62 | 0.41~1.9 | 0.57~2.62 | 0.8~3.69 |
| EER | 6.83~5.49 | 6.76~5.44 | 6.68~5.37 | 6.76~5.44 | 6.68~5.37 | 6.7~5.38 |
| [Space Cooling] Ambient Temp. (DB/WB): 35°C / 24, Water Temp. (Inlet/Outlet): 12°C/7°C. | ||||||
| Cooling Capacity (kW) | 1.7~6.29 | 2.39~8.82 | 3.25~12.01 | 2.39~8.82 | 3.25~12.01 | 4.59~16.93 |
| Power Input (kW) | 0.44~2.05 | 0.63~2.99 | 0.86~4.18 | 0.63~2.99 | 0.86~4.18 | 1.21~6.36 |
| EER | 3.85~3.07 | 3.82~2.95 | 3.77~2.87 | 3.82~2.95 | 3.77~2.87 | 3.78~2.66 |
| [Hot Water] Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. from 15°C to 55°C. | ||||||
| Heating Capacity (kW) | 6.72 | 9.43 | 12.83 | 9.43 | 12.83 | 18.09 |
| Power Input (kW) | 1.39 | 1.98 | 2.74 | 1.98 | 2.74 | 3.83 |
| COP | 4.83 | 4.77 | 4.69 | 4.77 | 4.69 | 4.72 |
| Max. Power Input (kW) | 2.48 | 3.51 | 4.83 | 3.51 | 4.83 | 6.80 |
| Max. Running Current (A) | 10.76 | 15.25 | 21.01 | 5.96 | 8.21 | 11.55 |
| Max. Outlet Water Temperature (°C) | 75 | |||||
| Heating Operating Ambient Temp. Range (℃) | -25~45 | |||||
| Cooling Operating Ambient Temp. Range (℃) | 15~48 | |||||
| Power Supply | 220-2410V~/ 50Hz | 380-415V/3N~/ 50Hz | ||||
| Rated Water Flow (m³/h) | 1.09 | 1.53 | 2.09 | 1.53 | 2.09 | 2.94 |
| Water Pressure Drop (kPa) | 15 | 22 | 30 | 22 | 30 | 52 |
| Expansion Tank (L) | 2 | 2 | 2 | 2 | 2 | 5 |
| Compressor Brand | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi |
| Circulating Pump Brand | GRUNDFOS | GRUNDFOS | GRUNDFOS | GRUNDFOS | GRUNDFOS | GRUNDFOS |
| Fan Quantity | 1 | 2 | ||||
| Display | 4-inch Color Touch Screen/7-inch Color Touch Screen | |||||
| Wi-Fi Function | YES | |||||
| ErP Level (35°C) | A+++ | |||||
| ErP Level (55°C) | A+++ | A+++ | A+++ | A+++ | A++ | A+++ |
| Refrigerant Type | R290 | |||||
| Sound Pressure Level dB(A) at 1m | 33~40 | 34~42 | 35~43 | 34~42 | 35~43 | 37~45 |
| Sound Power Level dB(A) | 48~55 | 49~57 | 50~58 | 49~57 | 50~58 | 52~60 |
| Water Pipe Connection (inch) | G1 1/4" | |||||
| Water Proof Class | IPX4 | |||||
| Electricity Shock Proof | Ⅰ | |||||
| Net Weight（kg） | 163 | 167 | 172 | 167 | 172 | 206 |
| Net Dimensions (L*W*H) (mm) | 1381*460*920 | 1227*480*1470 | ||||
| The above data are for reference only, the specific data are subject to actual product. | ||||||
