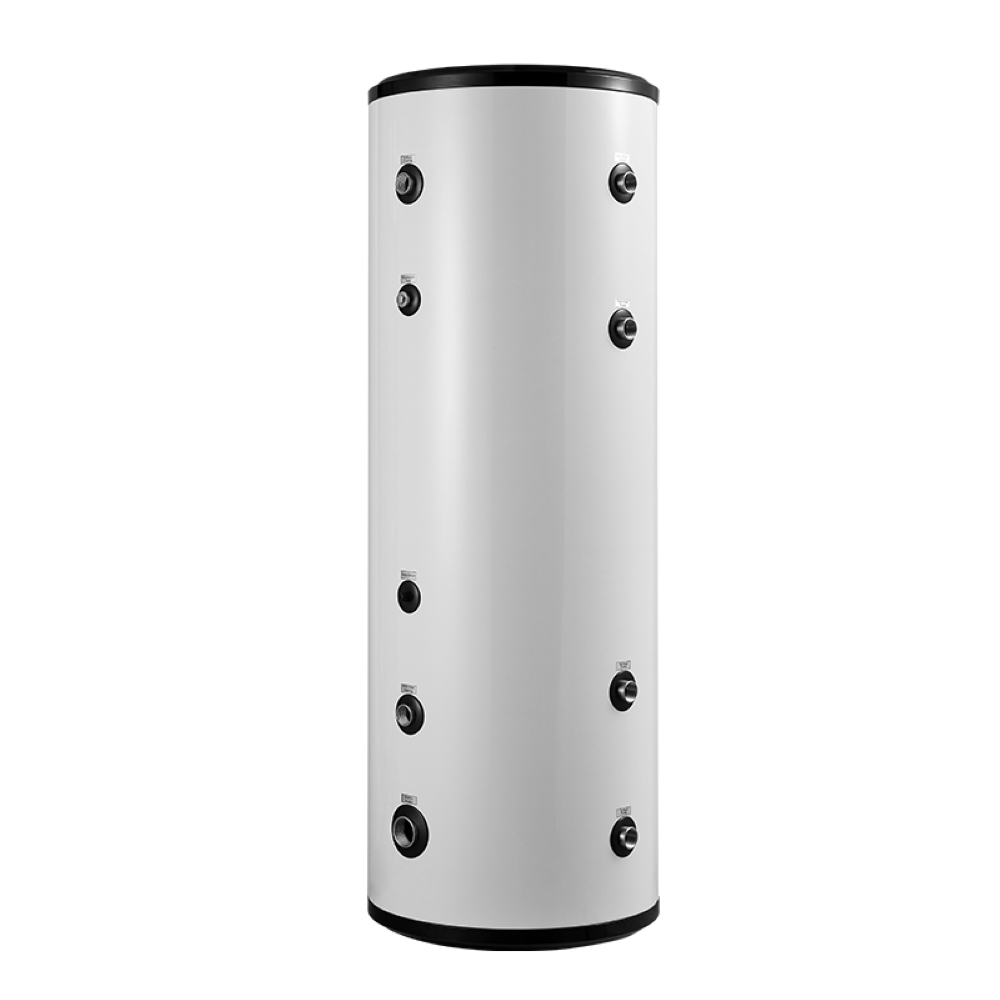

Reliable hot water, always ready
Efficient & Durable:
High-quality insulation minimizes heat loss, ensuring maximum energy efficiency and long-lasting performance.
Optimal Capacity:
Available in a range of sizes to perfectly match your household's hot water needs.
Easy Installation & Maintenance:
Designed for straightforward installation and hassle-free maintenance, saving you time and effort.
Parameters
| Model: | NF-150WT | NF-F200WT | NF-F260WT | NF-F320WT | NF-F500WT |
| Volume(L) | 150 | 200 | 260 | 320 | 500 |
| Max. Design Pressure of Water (Mpa) | 1 | 1 | 1 | 1 | 1 |
| Inner Tank Material | SUS304/SUS316 | SUS304/SUS316 | SUS304/SUS316 | SUS304/SUS316 | SUS304/SUS316 |
| Outer Tank Material | Coated Plate | ||||
| Circulating Inlet and Outlet | G1" | G1" | G1" | G1" | G1.5" |
| Cool Water Inlet | G3/4" | G3/4" | G3/4" | G3/4" | G3/4" |
| Hot Water Outlet | G3/4" | G3/4" | G3/4" | G3/4" | G3/4" |
| Drain Outlet | G1/2" | G1/2" | G1/2" | G1/2" | G1/2" |
| Pressure Release Port | G1/2" | G1/2" | G1/2" | G1/2" | G1/2" |
| Electric Heater Port | G1.5" | G1.5" | G1.5" | G1.5" | G1.5" |
| Bellows Coils (mm) | φ32×15000 | φ32×20000 | φ32×25000 | φ32×30000 | φ32×40000 |
| Electric Heating (kW) | 3 (single-phase or three-phase )(optional) | ||||
| Power Supply | 220-240V~/50Hz or 380-415V/3N~/50Hz (optional) | ||||
| Max. Running Current (A) | 13/5.4 | 13/5.4 | 13/5.4 | 13/5.4 | 13/5.4 |
| Anodic Protection Type | Magnesium | ||||
| Size of Inner Bladder (mm) | Φ370×1380 | Φ420×1380 | Φ470×1400 | Φ470×1630 | Φ600×1700 |
| Net Dimensions(L×W×H) (mm) | Φ470×1510 | Φ520×1510 | Φ560×1540 | Φ560×1820 | Φ700×1820 |
| Net Weight (kg) | 35 | 40 | 48 | 56 | 68 |
| The above data are for reference only, the specific data are subject to actual product. | |||||
